Mercusys MR85X | AX3000 Dual-Band Wi-Fi 6 Router

Name: Mercusys MR85X | AX3000 Dual-Band Wi-Fi 6 Router
Brand: Mercusys
Price: 29.990 JOD
Availability: InStock

29.990 JOD

تخفيضات مباع كله

رسوم الدفع محسوبة مقابل.

Mercusys MR85X | AX3000 Dual-Band Wi-Fi 6 Router

Description:

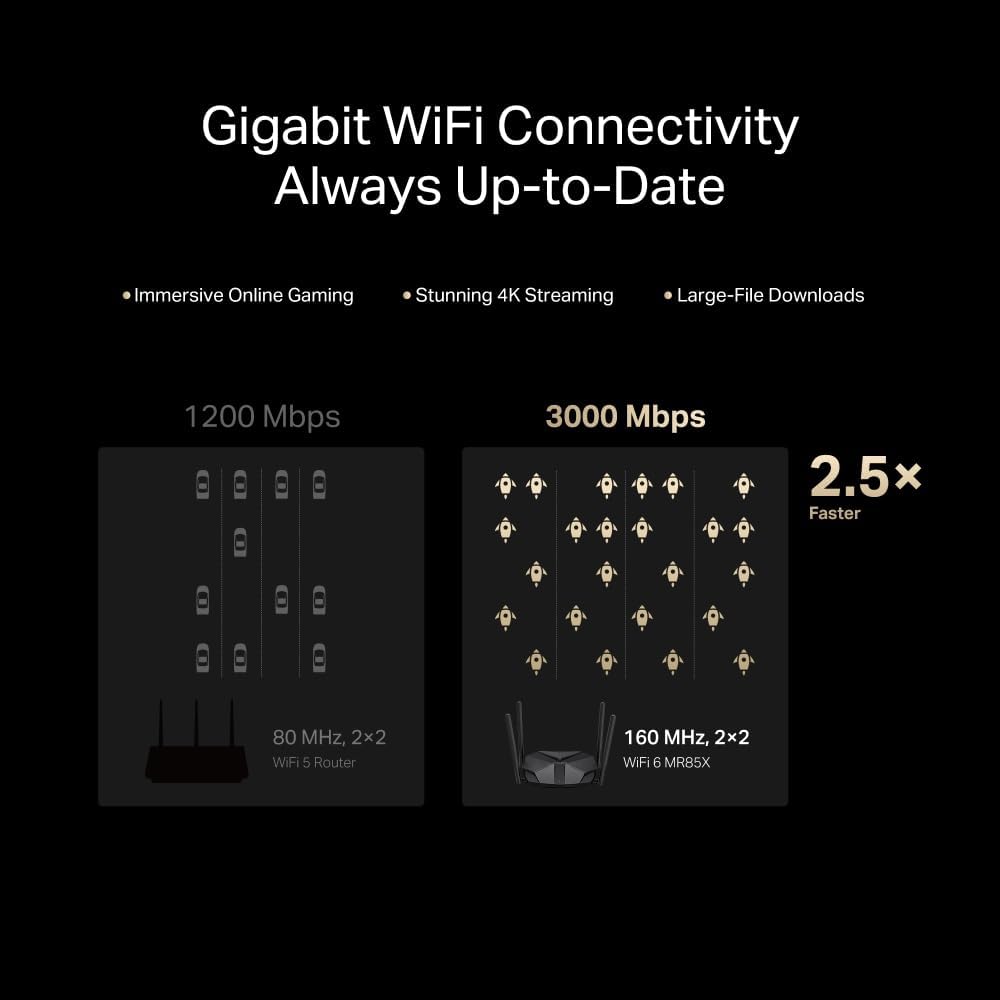

OPTIMAL WIFI 6 SPEEDS – Optimal WiFi 6 speeds reaching up to 3 Gbps for faster browsing, streamings, and downloading, all at the same time.

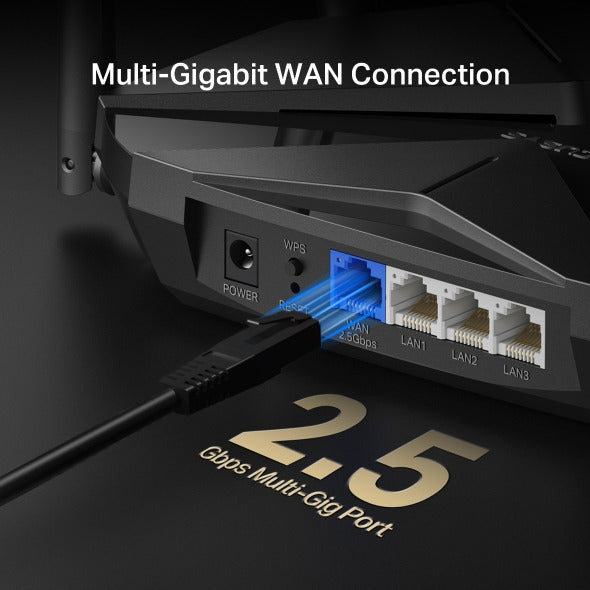

2.5 Gbps MULTI-GIG PORT – Break through the 1G bottleneck and drive your devices to peak performance.

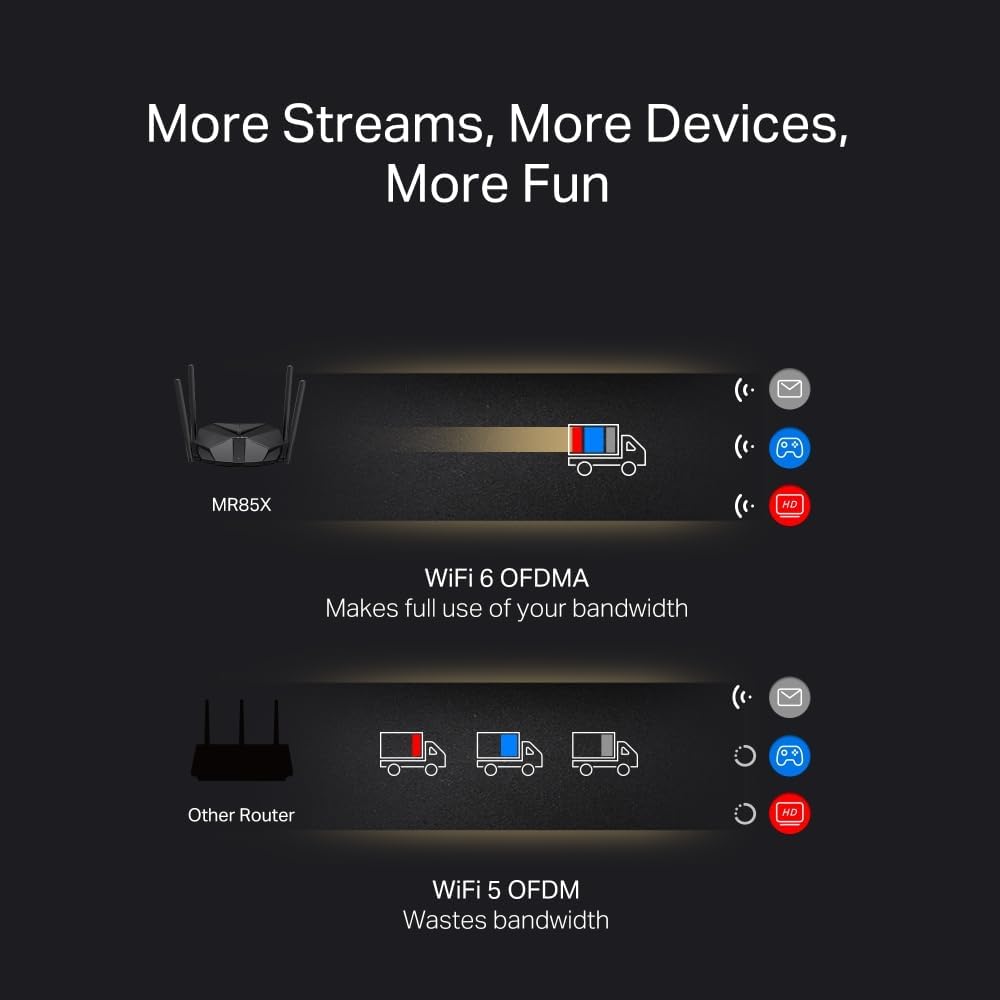

MORE DEVICES, MORE FUN – Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput.

WiFi THAT GOES FARTHER – 4× multi-directional antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner

OVERALL SECURITY PROTECTION – The latest WPA3 provides improved WiFi security

GIGABIT WIRED CONNECTIONS – Make full use of your internet access and transfer data at dizzying speeds for peak performance

ECO-FRIENDLY POWER SAVING – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions

LESS WIFI INTERFERENCE – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS coloring

SMART CONNECT – Intelligently chooses the best available band for each device

Hardware Features

Dimensions

209 × 171.7 × 42.4 mm(8.2 × 6.8 × 1.7 in)Interfaces1× 2.5G WAN3× GE LAN

Antenna

2× 5G External Antennas(5dBi）1× 2.4G & 5G External Antenna(2.4G: 3dBi, 5G:5dBi)1× 2.4G External Antenna(5dBi）

Button

1× WPS Button1× Reset ButtonInstallationDesktopWall-mountLED1× SYS

Retail Package Dimension

359 × 274 × 60mm

Units per Carton

10Carton Dimension560 × 370 × 310mm

IPTV

IGMP ProxyIGMP SnoopingBridgeTag VLANPowerInput：100~240V, 50/60HzOutput: 12V/1.5A

Wireless Features

Wi-Fi Class

AX3000
Wi-Fi (2.4 GHz)574MbpsWi-Fi ( 5 GHz)2402MbpsWireless Standards802.11ax/ac/a/b/g/nMax Channel Width160MHzReception Sensitivity

5G: 11a 6Mbps: -95dBm 11a 54Mbps:-76.5dBm 11n HT20 MCS7:-76dBm 11n HT40 MCS7:-73dBm 11ac VHT20 MCS8:-71.5dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63.5dBm 11ax HE20 MCS11:-64.5dBm 11ax HE40 MCS11:-63dBm 11ax HE80 MCS11:-58.5dBm 11ax HE160 MCS11:-56dBm

2.4G: 11g 6Mbps : -97dBm 11g 54Mbps: -79dBm 11n HT20 MCS7:-78dBm 11n HT40 MCS7:-75dBm 11ax HE20 MCS11:-66.5dBm 11ax HE40 MCS11:-65.5dBm

Max Wi-Fi Modulation1024 QAM

Wireless Security

WPA/WPA2/WPA3

Wireless Functions

Guest NetworkSmart ConnectWireless ScheduleWPSAP IsolationAirtime Fairness

Software Features

Operation Mode

Router/AP mode

WAN Mode

Dynamic IPStatic IPPPPoEPPTPL2TP

NAT Forwarding

Port ForwardingPort TriggeringDMZUPnPProtocolsIPv4IPv6Guest Network2.4G Guest Network5G Guest NetworkParental ControlsProfile SettingsTime ControlPause the InternetWebsite FilteringDHCPAddress ReservationDHCP Client ListServerDDNSMERCUSYSNO-IPDynDNSVPN ServerOpenVPNPPTPL2TP/IPSecWireGuard

VPN Client

OpenVPNPPTPL2TP/IPSecWireGuardEasymeshEasymesh CompatibleQoSTime SettingsPriority ControlSecuritySPI FirewallAccess ControlIP & MAC Binding
Kill SwitchSupportISP FeatureCWMPISP Preset(Agile Config)Superadmin
SystemFirmware UpgradeBackup and RestoreAdministrationSystem LogTime & Language SettingsRebootDiagnosticsPingTracerouteLED ManagementLED ControlNight ModeDevice ManagementMERCUSYS APPWebpageCloudMERCUSYS IDLanguage

BulgarianCzechDanishGermanEnglishSpanishFinnishFrenchHungarianItalianJapaneseKoreanDutchNorwegianPolishPortuguesePortuguese - BrazilRomanianRussianSlovakSwedishTurkishUkrainianVietnameseChinese - Taiwan

Advanced Features

OFDMAMU-MIMOBSS ColorBeamforming

Others

Network Services Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP
DNS DNS • Port: 53 Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP
App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 30001 Protocol: TCP • Port: 20002 Protocol: UDP

Network Services Enabled by Default

Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443; Protocol: TCP

DHCP Server

IP address assignment (DHCP)

• Port: 67; Protocol: UDP

DNS

DNS

• Port: 53; Protocol: TCP & UDP

App management

Manage and configure device through app

• Port: 20001; Protocol: TCP

• Port: 20002; Protocol: UDP
