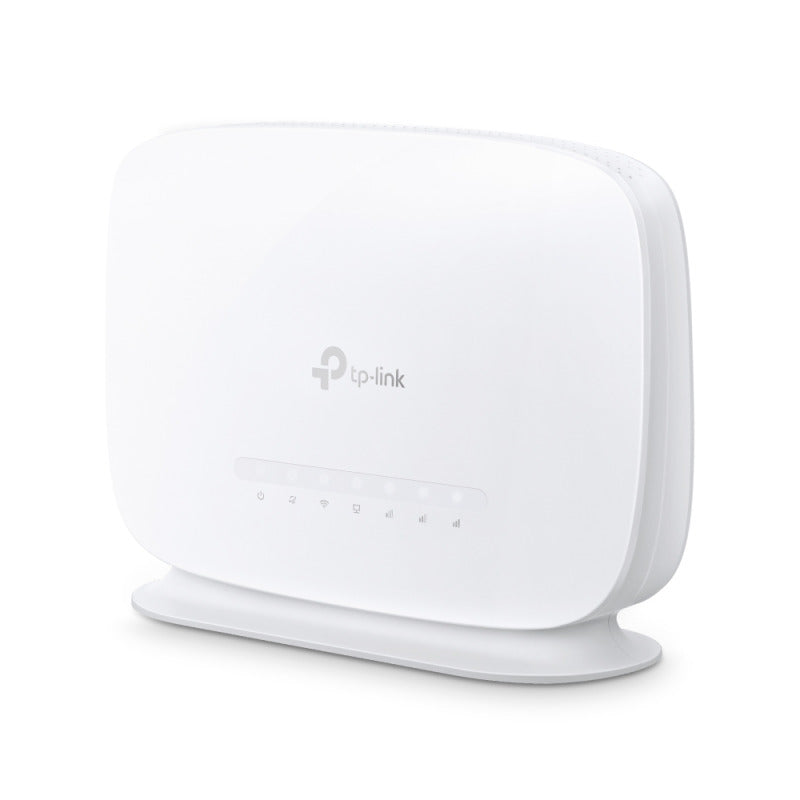

Tp-Link Archer MR505 | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
Tp-Link Archer MR505 | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
تعذر تحميل توفر الاستلام
Tp-Link Archer MR505 | 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router
Description:
Supports 4G+ Cat6 with download speeds up to 300 Mbps for fast, reliable internet anywhere.
Insert SIM and go – no configuration required, tested for compatibility in over 100 countries.
Features MU-MIMO technology for better Wi-Fi efficiency and simultaneous data streaming.
EasyMesh-compatible, allowing seamless expansion into a whole-home mesh Wi-Fi system.
Delivers strong, stable signal to all your connected devices.
Includes full Gigabit ports for high-speed wired connections – ideal for gaming and IPTV.
Wi-Fi Router Mode: use Ethernet as a backup if 4G isn’t available.
Quick setup and control via the TP-Link Tether app.
Hardware Features

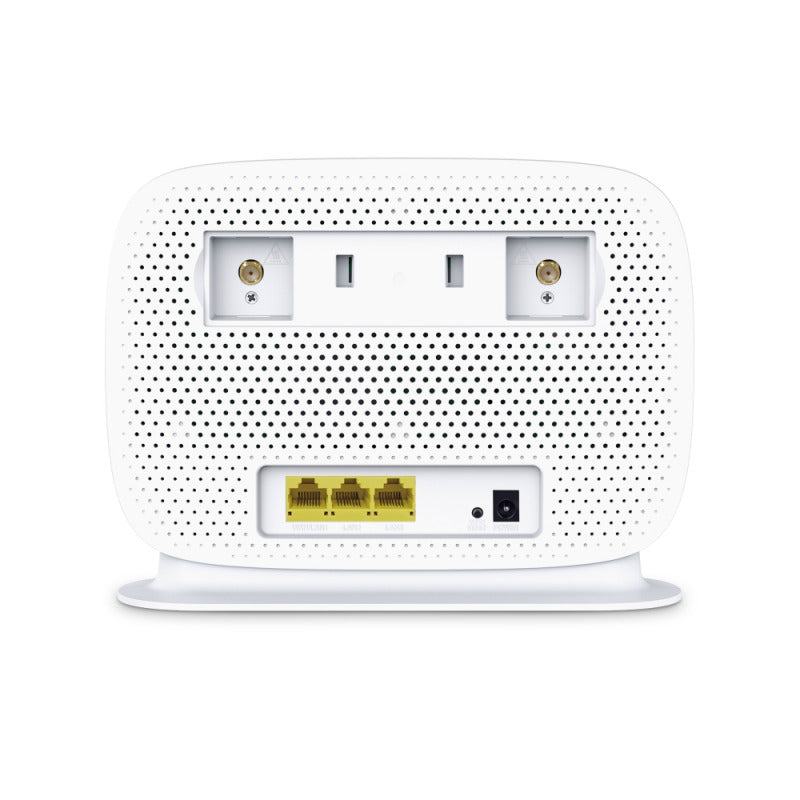

| Interface | 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports 1 × Nano SIM Card Slot 2 × External SMA-F Antenna Interface |
|---|---|
| Power Supply | 12V/1.5A |
| Dimensions ( W x D x H ) | 212 × 157.5 × 57 mm (8.35 × 6.20 × 2.24 in) |
| Antenna | 2 Detachable External LTE Antennas |
Wireless Features
| Wireless Standards | IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz |
|---|---|
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz |
| Reception Sensitivity | 5 GHz: 11a 54M: -77 dBm 11ac HT20: -73 dBm 11ac HT40: -68 dBm 11ac HT80 : -64 dBm 11n HT20: -77 dBm 11n HT40: -73 dBm 2.4 GHz: 11g 54M: -74 dBm 11n HT20: -72 dBm 11n HT40: -69 dBm |
| Transmit Power | < 20 dBm (2.4 GHz), < 23 dBm (5 GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise |
| Network Type | Compatible with the majority of mobile operators and supports 4G/3G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) DC-HSPA+/HSPA/UMTS: B1/B3/B5/B8 (2100/850/900 MHz) |
Software Features
| Quality of Service | Prioritizes network traffic by device |
|---|---|
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control, Service Filtering |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | VPN Server: PPTP VPN, OpenVPN |
| Parental Controls | URL Filtering, Time Controls |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1 |
Others
| Certification | CE, RoHS |
|---|---|
| Package Contents | 4G+ Cat6 300 Mbps LTE AC1200 Wireless Dual Band Gigabit Router Archer MR505 1.5m Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
