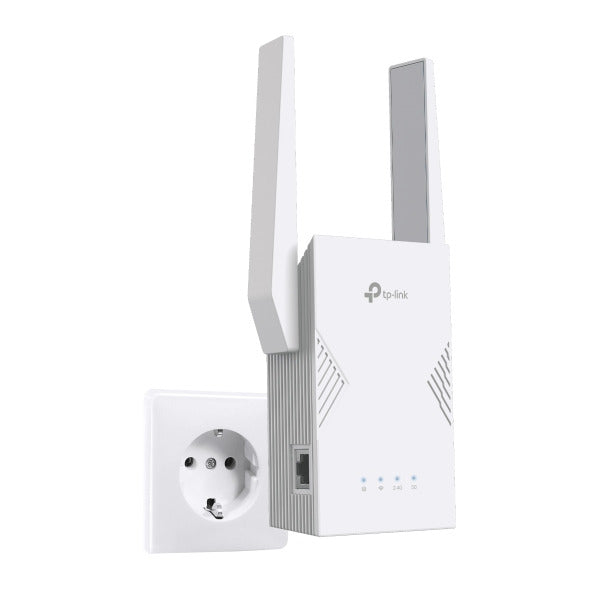

Tp-Link RE225BE | BE3600 Dual-Band Wi-Fi 7 Range Extender
Tp-Link RE225BE | BE3600 Dual-Band Wi-Fi 7 Range Extender
تعذر تحميل توفر الاستلام
Tp-Link RE225BE | BE3600 Dual-Band Wi-Fi 7 Range Extender
Description:
3.6 Gbps Dual-Band Wi-Fi 7: Delivers up to 3.6 Gbps speed(2882 Mbps on 5 GHz and 688 Mbps on 2.4 GHz) ,providing consistent performance for daily streaming, browsing, and multitasking.
Multi-Link Operation (MLO): Supports MLO technology to improve throughput, reduce latency, and increase link reliability.

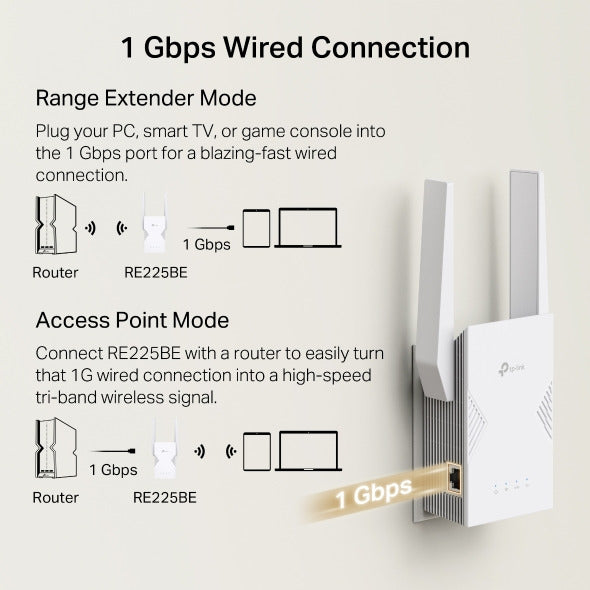

Gigabit Ethernet Port: Provides faster wired connections to smart TVs, computers, and gaming consoles.
Smart Roaming: Walk from room to room and stay connected with the fastest possible speeds.
EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh Wi-Fi, preventing drops and lag when moving between signals.

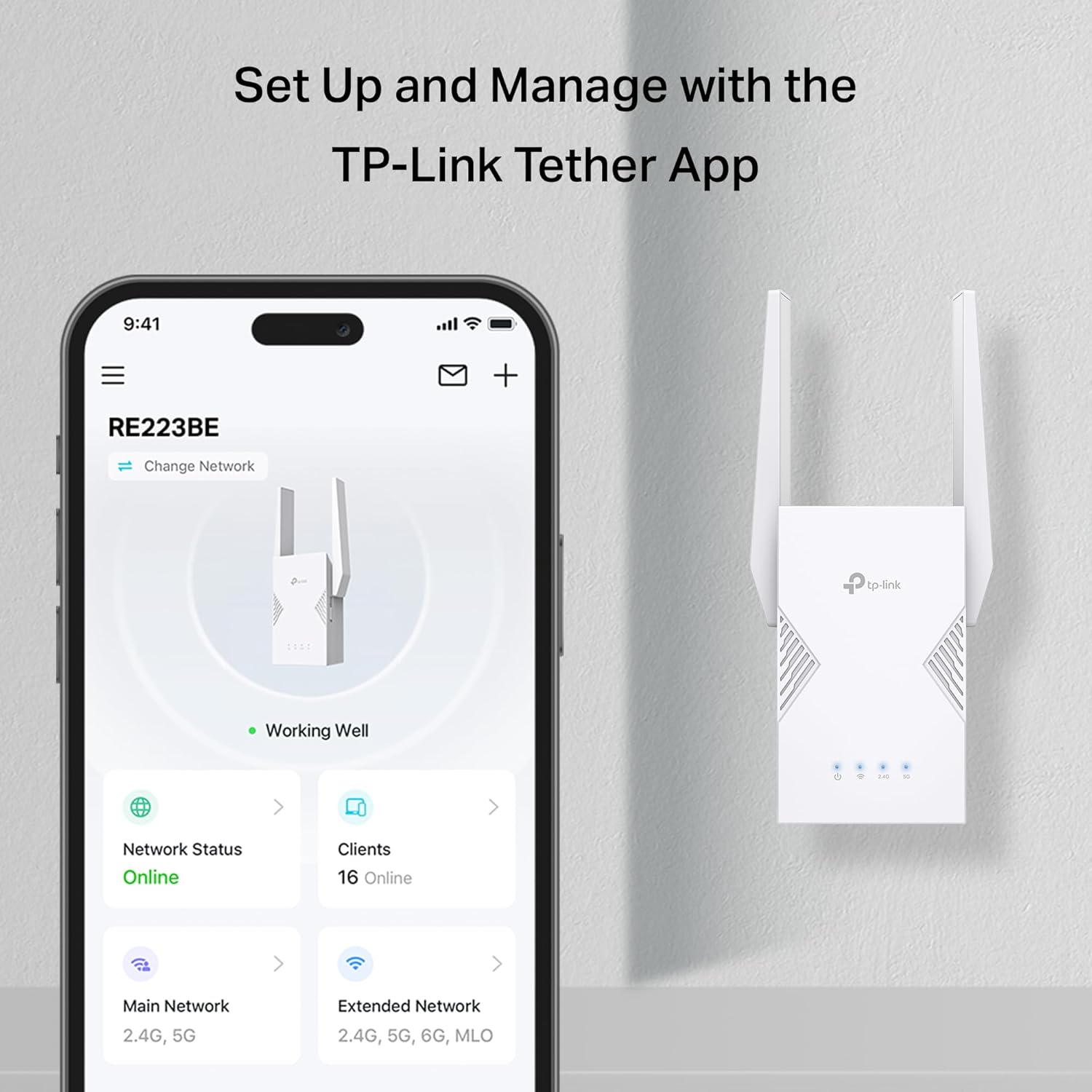

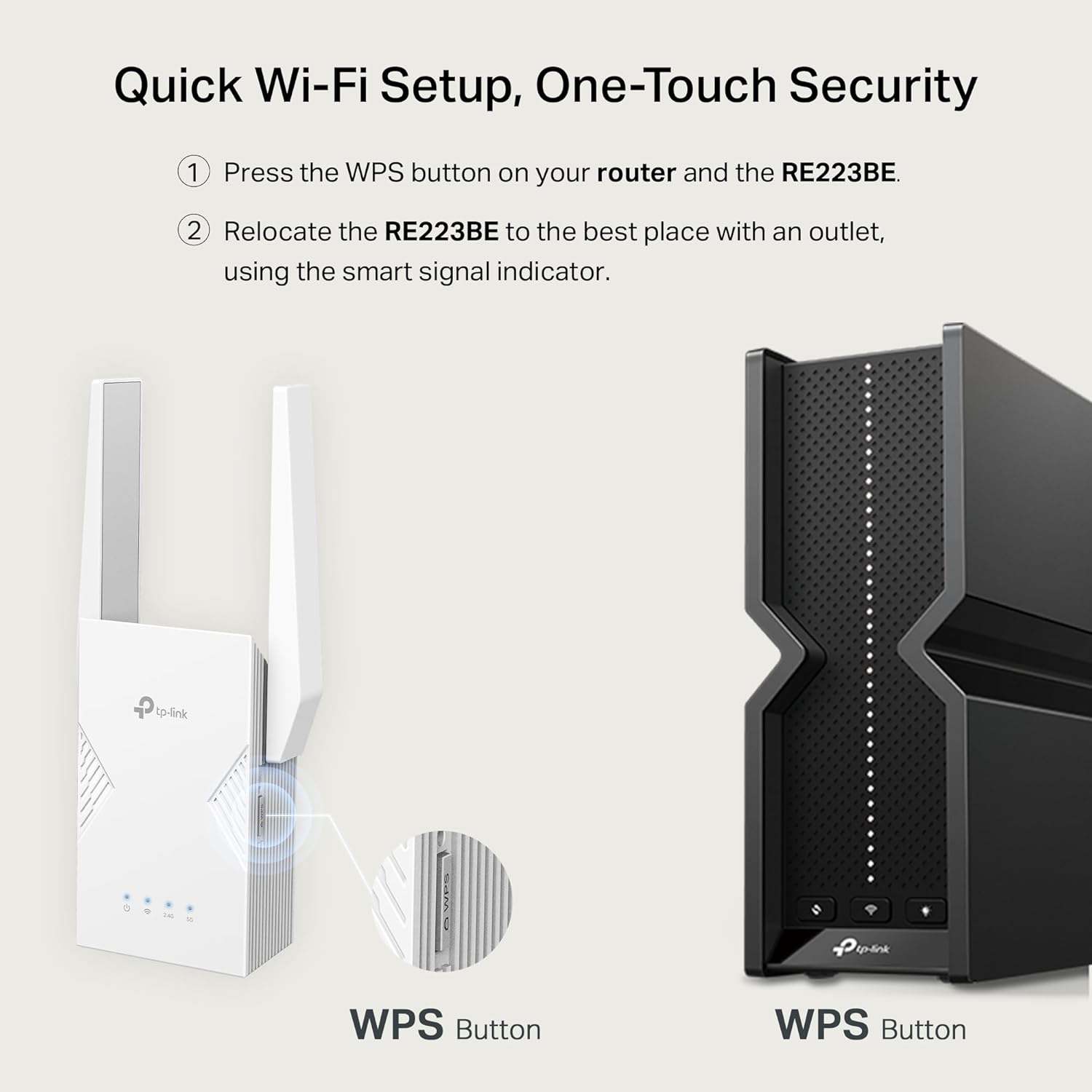

Quick and Simple Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.
Hardware Features
| Interface | 1 Gbps Ethernet Port |
|---|---|
| Button | • WPS Button • Reset Button |
| Input Power | 100-240V~50/60Hz 0.3A |
| Max. Power Consumption | 15W |
| Dimensions ( W x D x H ) | 3.8 × 1.8 × 6.2 in (97 × 46 × 158 mm) |
| Antenna | 2 External Antennas |
Wireless Features
| Wireless Standards |
Wi-Fi 7 IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz |
|---|---|
| Frequency | • 5 GHz • 2.4 GHz |
| Signal Rate | • 2882 Mbps at 5 GHz • 688 Mbps at 2.4 GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 5GHz: 11be EHT20 MCS0:-96dBm 11be EHT40 MCS0:-94dBm 11be EHT80 MCS0:-91dBm 11be EHT160 MCS0:-88dBm 11be EHT20 MCS13:-59dBm 11be EHT40 MCS13:-57dBm 11be EHT80 MCS13:-54dBm 11be EHT160 MCS13:-51dBm 2.4GHz: 11be EHT20 MCS0:-95dBm 11be EHT40 MCS0:-93dBm 11be EHT20 MCS13:-58dBm 11be EHT40 MCS13:-56dBm |
| Wireless Security | • WPA/WPA2-PSK encryptions • WPA2/WPA3 |
| Advanced Features | • Multi-Link Operation (MLO) • 160 MHz Channel • 4K-QAM • Multi-RUs |
| Transmission Power | FCC: • 2.4GHz < 30dBm • 5GHz < 30dBm |
| Mesh Technology | EasyMesh-Compatible |
| Wireless Function | • LED Control • Access Control • Power Schedule • Wi-Fi Coverage |
Others
| Certification | FCC, RoHS |
|---|---|
| Package Content | • Wi-Fi 7 Range Extender RE235BE • Quick Installation Guide |
| System Requirements | Internet Explorer, Firefox, Chrome, Safari, or other JavaScript-enabled browser |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| Certification | FCC, RoHS |
|---|---|
| Package Content | • Wi-Fi 7 Range Extender RE235BE • Quick Installation Guide |
| System Requirements | Internet Explorer, Firefox, Chrome, Safari, or other JavaScript-enabled browser |
| Environment | • Operating Temperature: 0℃~40℃ (32℉ ~104℉) • Storage Temperature: -40℃~70℃ (-40℉ ~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| Network Services Enabled by Default |
Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443 Protocol: TCP DHCP Server IP address assignment (DHCP) • Port: 67 Protocol: UDP App management Manage and configure device through app • Port: 20001 Protocol: TCP • Port: 20002 Protocol: UDP |
|---|
