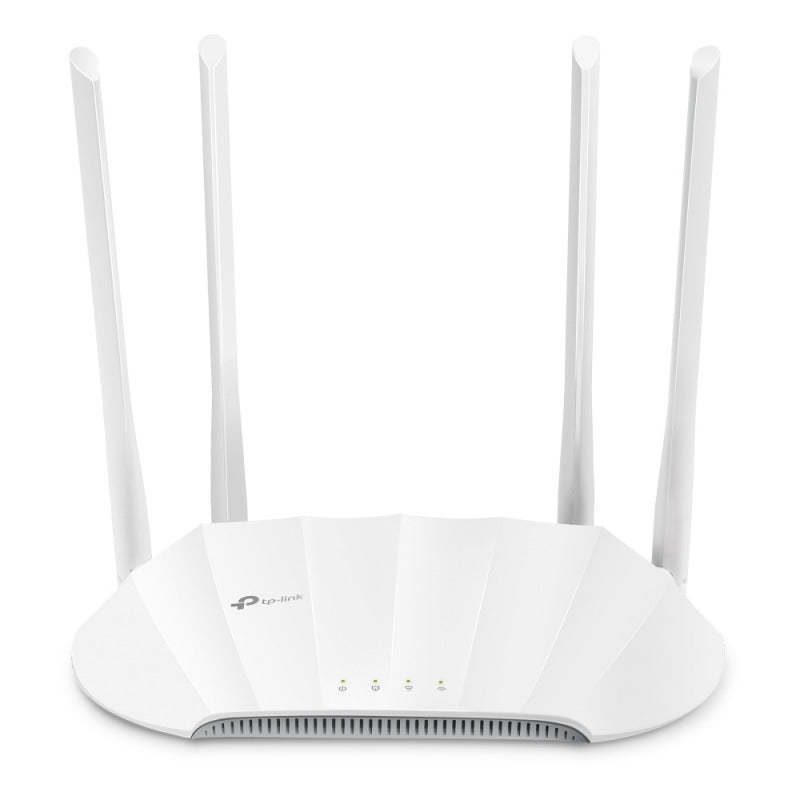

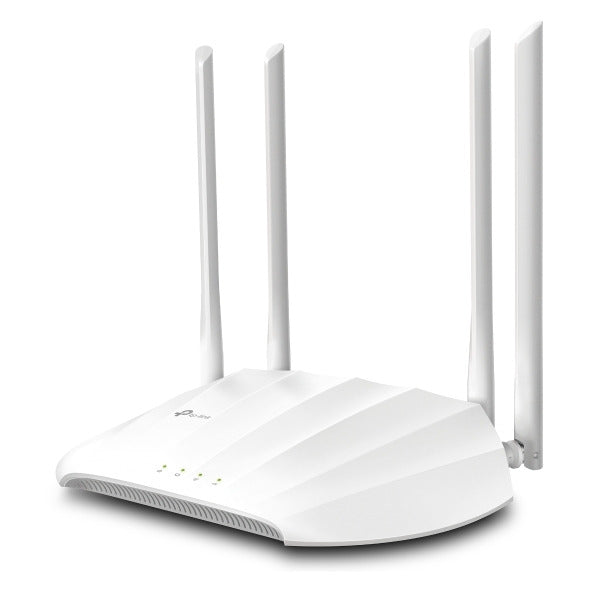

TP-Link WA1801-AX1800 Gigabit Wi-Fi 6 Access Point
TP-Link WA1801-AX1800 Gigabit Wi-Fi 6 Access Point
تعذر تحميل توفر الاستلام
TP-Link WA1801-AX1800 Gigabit Wi-Fi 6 Access Point
Description:

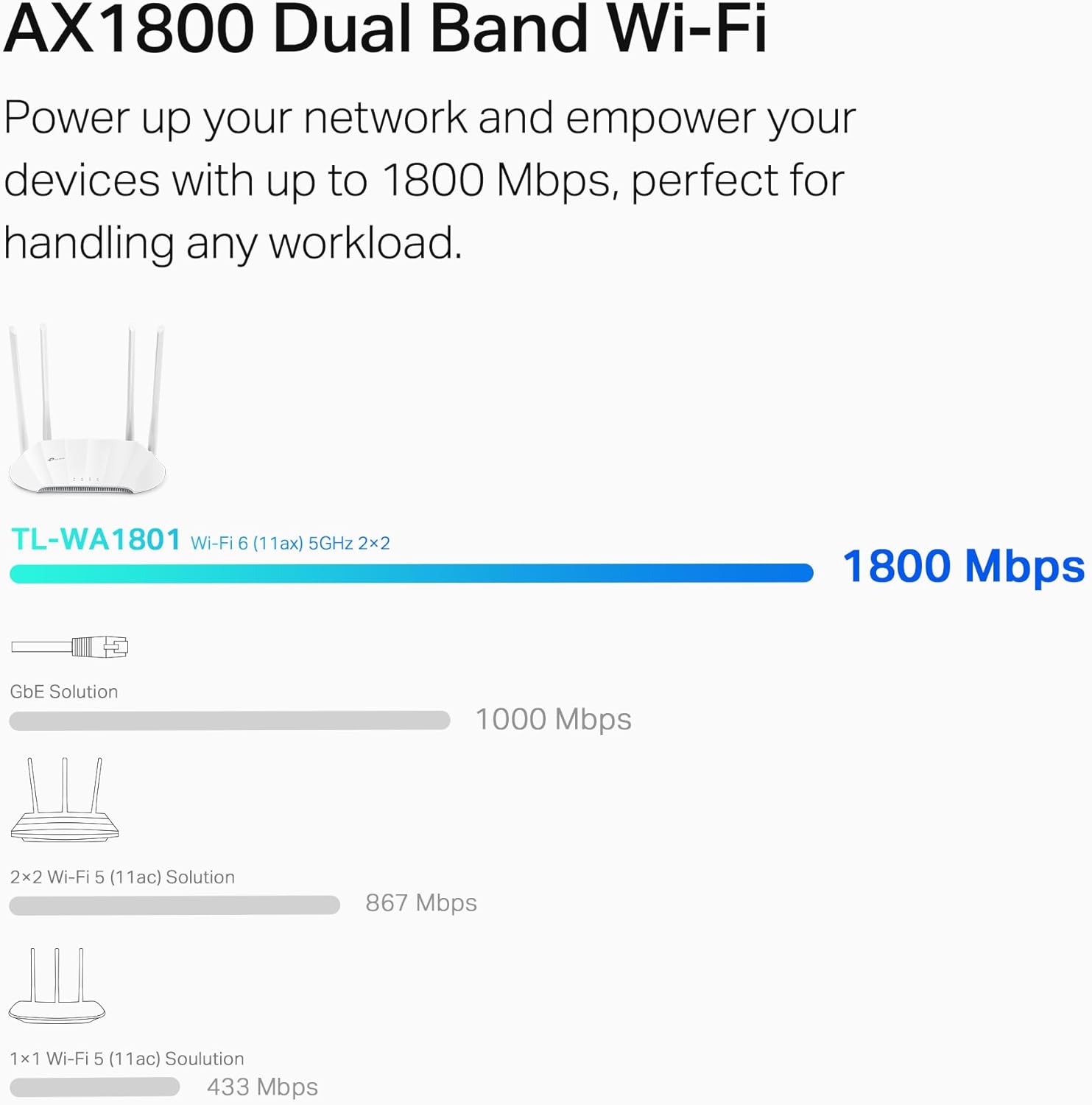

Gigabit WiFi 6 Speed – 1.8 Gbps Dual Band WiFi for faster browsing, streaming and downloading, all at the same time.†

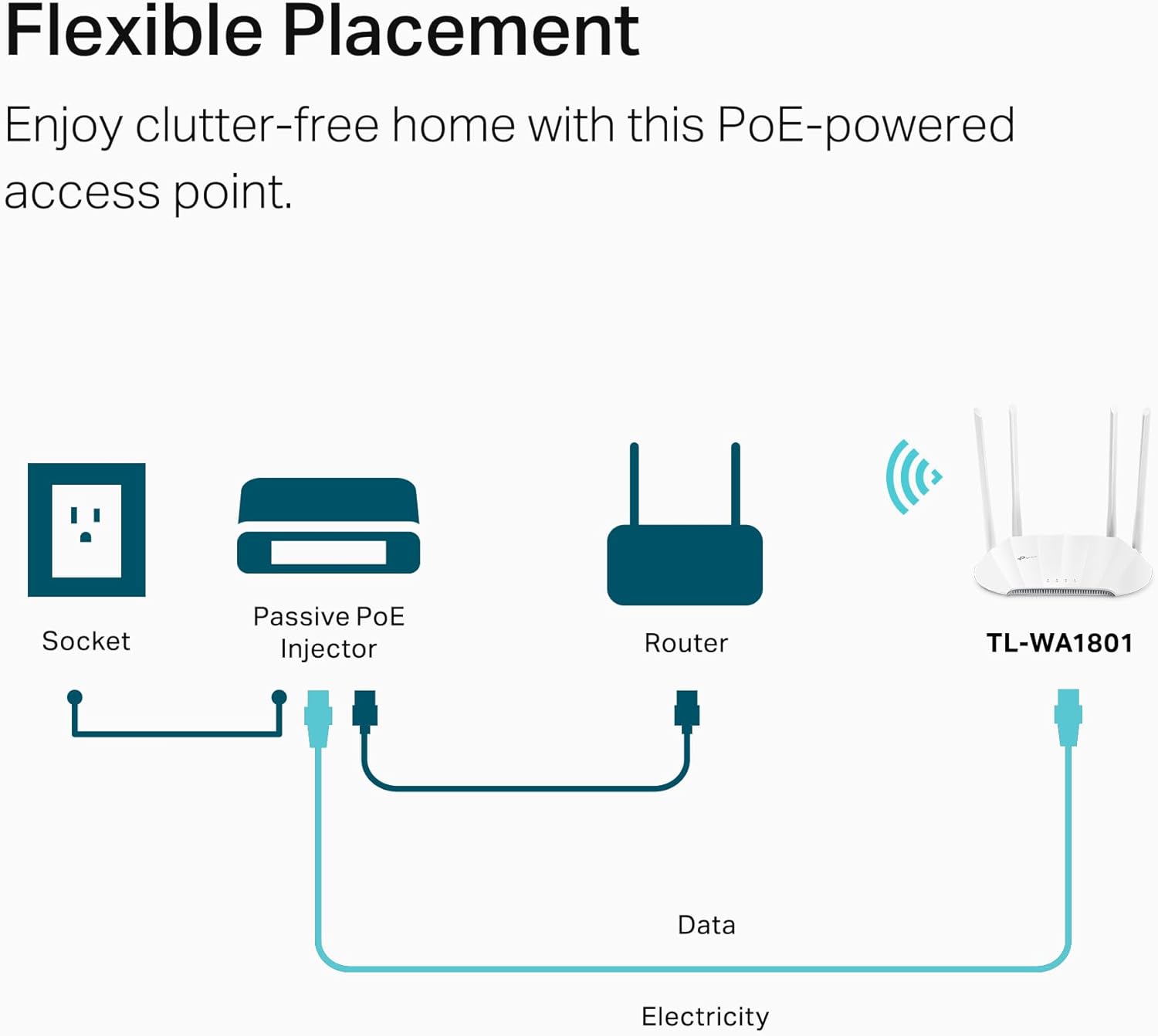

Flexible Deployment – Supports Passive PoE to carry electrical power and data simultaneously.

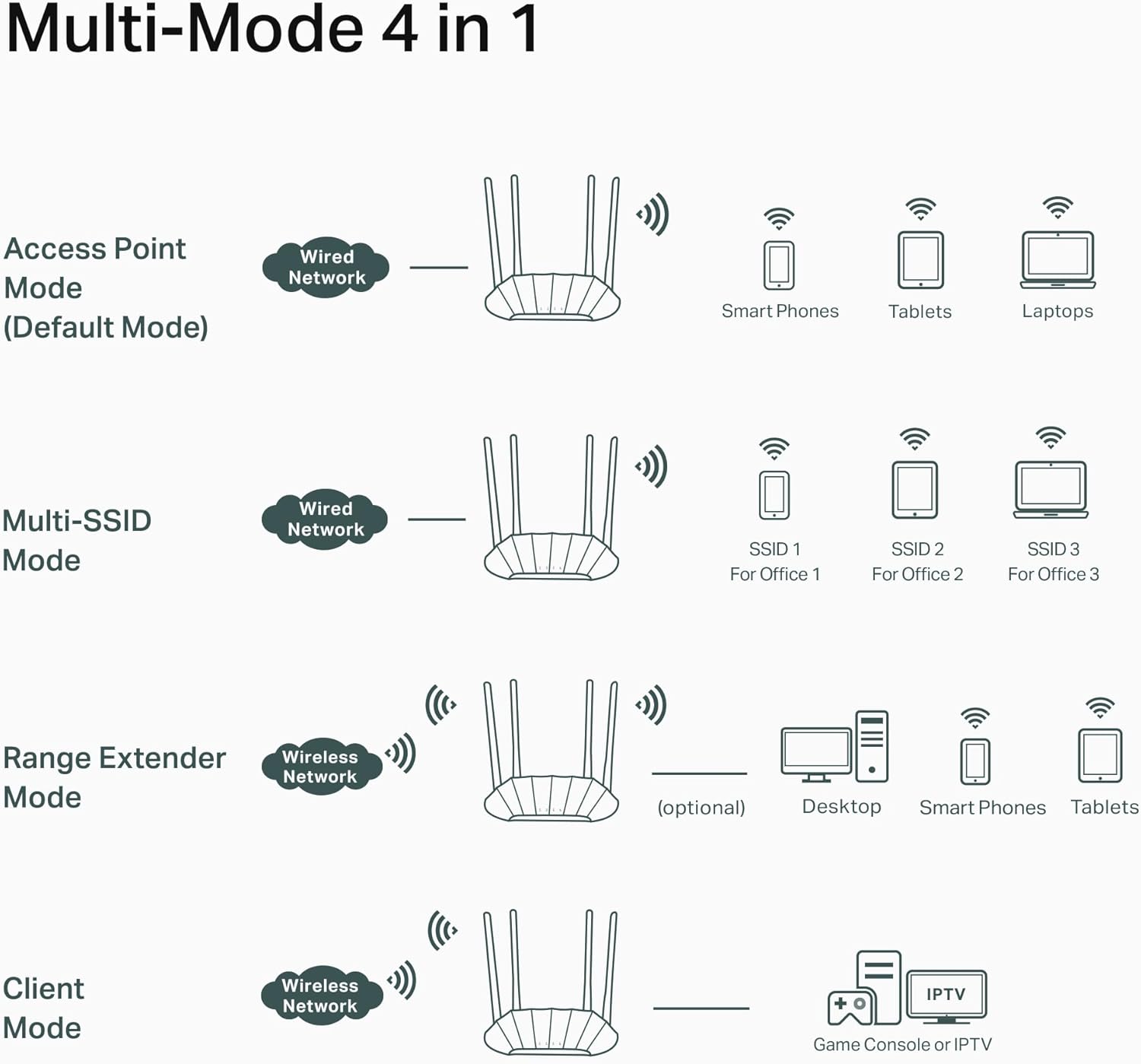

Multiple Modes – Supports Access Point, Range Extender, Multi-SSID, and Client modes to meet any network needs.

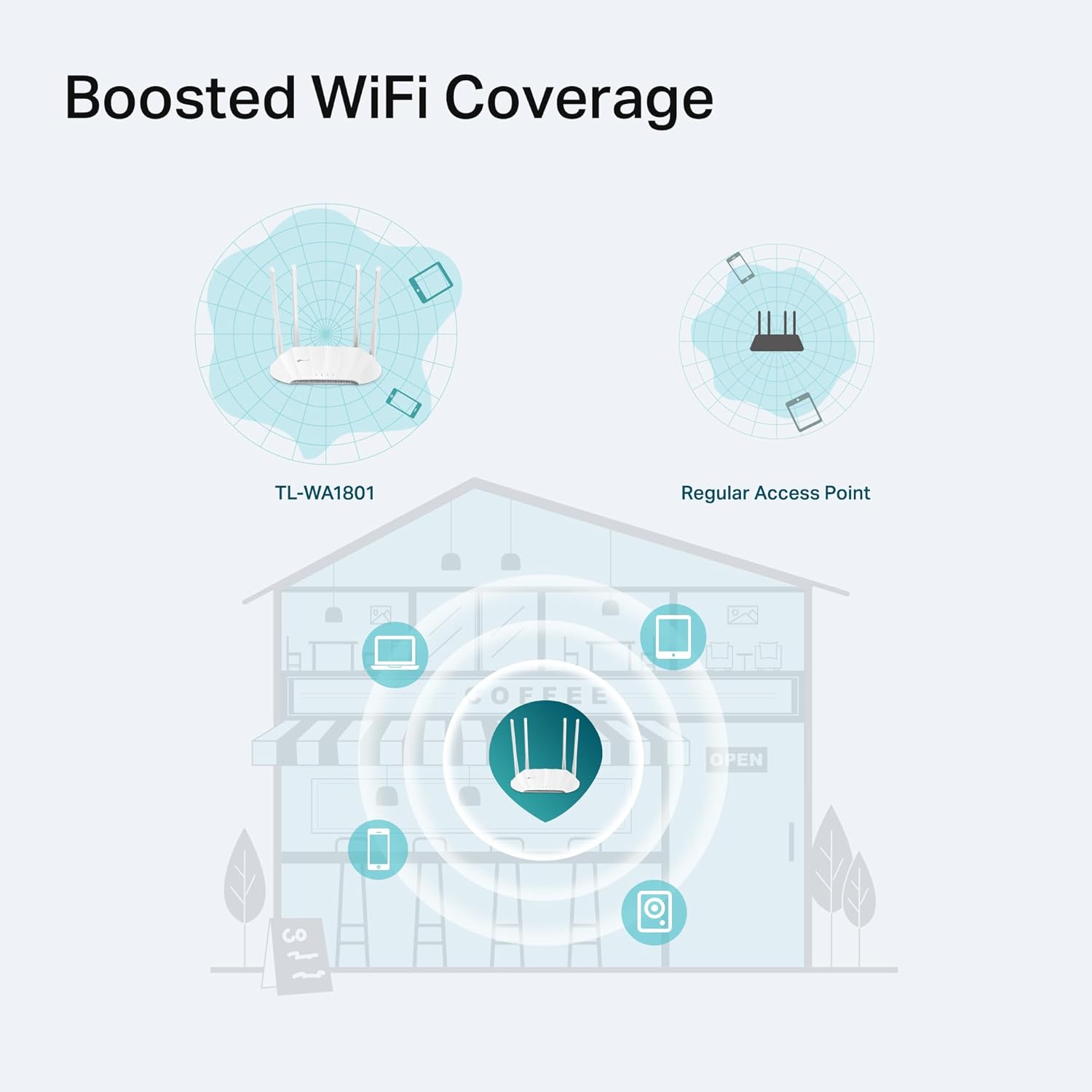

Boosted Coverage – Four fixed antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals.
Captive Portal – Offers a designed portal page for heightened security and marketing.
Hardware Features

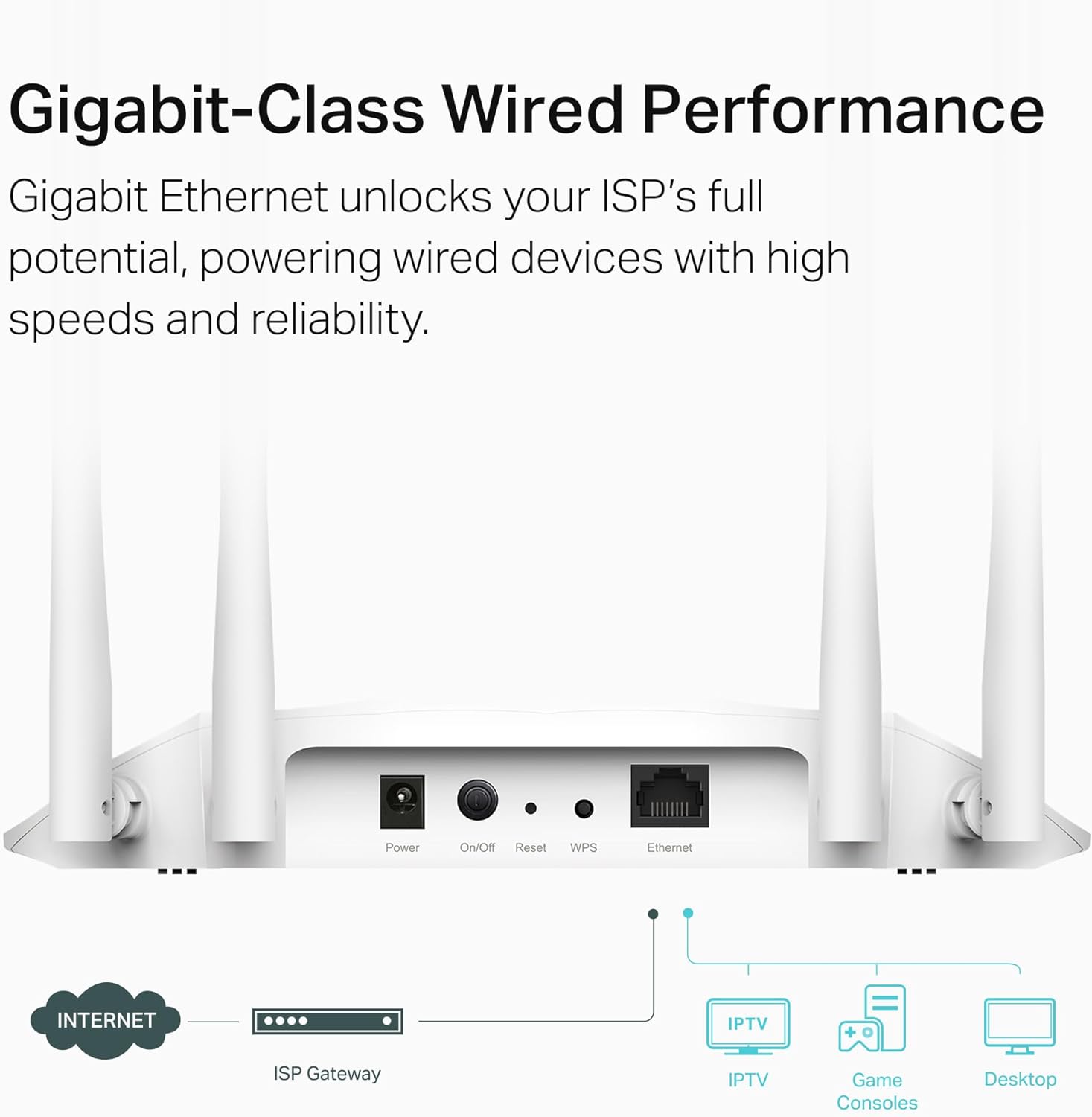

Interface: 1 × Gigabit Ethernet Port (Supports Passive PoE)
Buttons: Power On/Off, WPS, Reset
External Power Supply: 48V / 0.375A
Antenna Type: 4 × External Antennas
Dimensions (W × D × H):
8.9 × 5.7 × 1.5 in
(225 × 145.5 × 37 mm)
Wireless Features
Wireless Standards
IEEE 802.11b/g/n/ax (2.4 GHz)
IEEE 802.11a/n/ac/ax (5 GHz)
Frequency Bands
2.4 GHz
5 GHz
Signal Rates
5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Reception Sensitivity
5 GHz
11a 6Mbps: −97 dBm
11a 54Mbps: −76 dBm
11ac VHT20 MCS0: −96 dBm
11ac VHT20 MCS8: −72 dBm
11ac VHT40 MCS0: −93 dBm
11ac VHT40 MCS9: −67 dBm
11ac VHT80 MCS0: −90 dBm
11ac VHT80 MCS9: −63 dBm
11ax HE20 MCS0: −96 dBm
11ax HE20 MCS11: −65 dBm
11ax HE40 MCS0: −93 dBm
11ax HE40 MCS11: −61 dBm
11ax HE80 MCS0: −90 dBm
11ax HE80 MCS11: −60 dBm
2.4 GHz11g 6Mbps: −96 dBm
11g 54Mbps: −75 dBm
11ac VHT20 MCS0: −95 dBm
11ac VHT20 MCS8: −72 dBm
11ac VHT40 MCS0: −92 dBm
11ac VHT40 MCS9: −67 dBm
11ax HE20 MCS0: −95 dBm
11ax HE20 MCS11: −65 dBm
11ax HE40 MCS0: −92 dBm
11ax HE40 MCS11: −62 dBm
Transmit Power
FCC: < 30 dBm (2.4 GHz & 5.15–5.825 GHz)
Wireless Functions
Enable/Disable Wireless Radio
WMM
Wireless Statistics
Access Control
Wireless Security
WPA / WPA2 / WPA3
WPA / WPA2-Enterprise Encryption
Software Features
Quality of Service: WMM
Operating Modes: Access Point, Range Extender, Client, Multi-SSID
System Tools: SNMP, Ping Watchdog
DHCP: Server, DHCP Client List
Protocols: IPv4, IPv6
Certification
FCC
RoHS
Package Contents
Wireless Access Point (TL-WA1801)
Power Adapter
RJ45 Ethernet Cable
PoE Power Injector
Quick Installation Guide
System Requirements
Internet Explorer 11+
Firefox 12.0+
Chrome 20.0+
Safari 4.0+
Other JavaScript-enabled browsers
Environment
Operating Temperature: 0°C – 40°C (32°F – 104°F)
Operating Humidity: 10% – 90% (Non-condensing)
