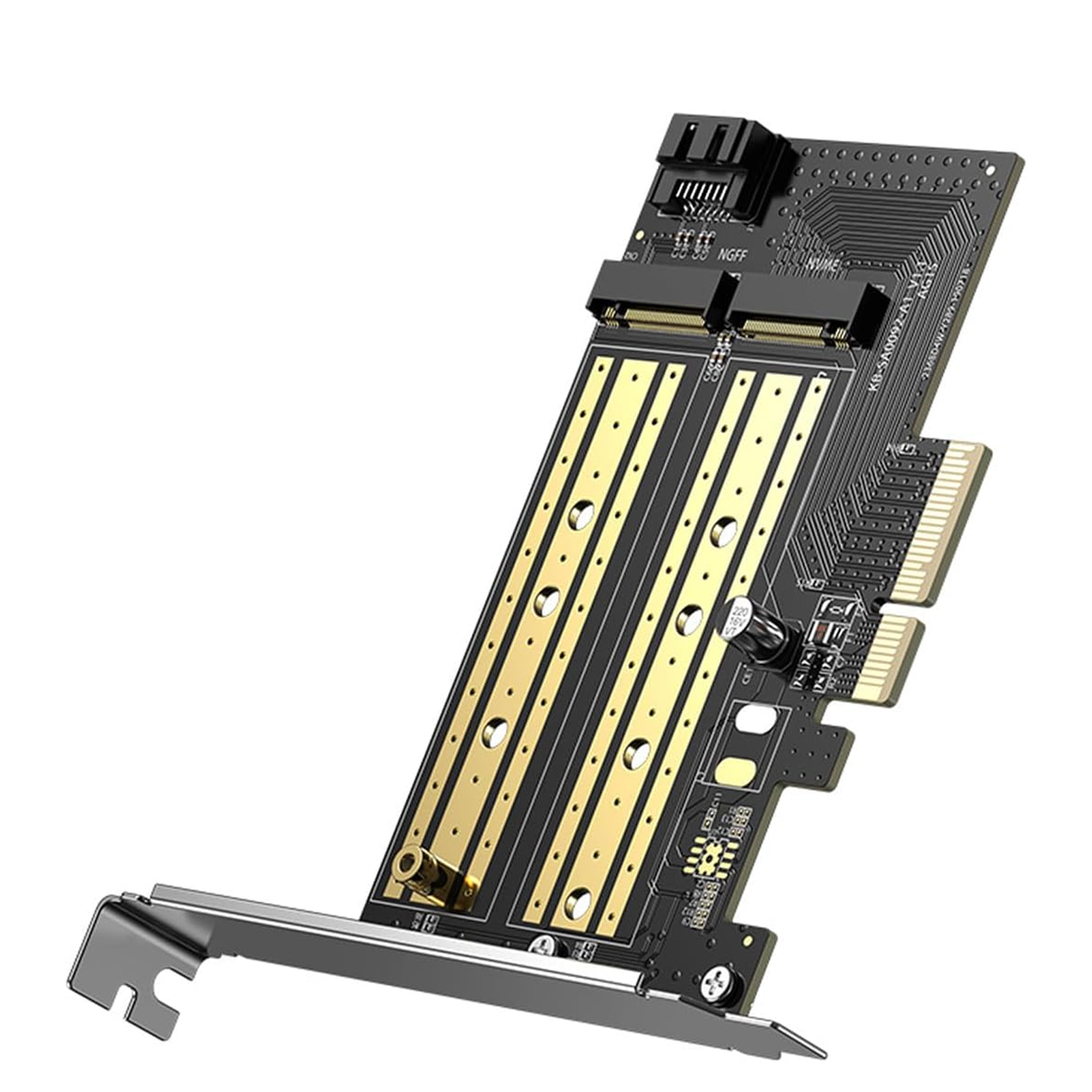

UGREEN M.2 NVMe + M.2 SATA to PCI-E 3.0 X 4 – PCI express card
Description:
Ugreen 70504 supports two M2 converter card slots. Two slots can be used at the same time.

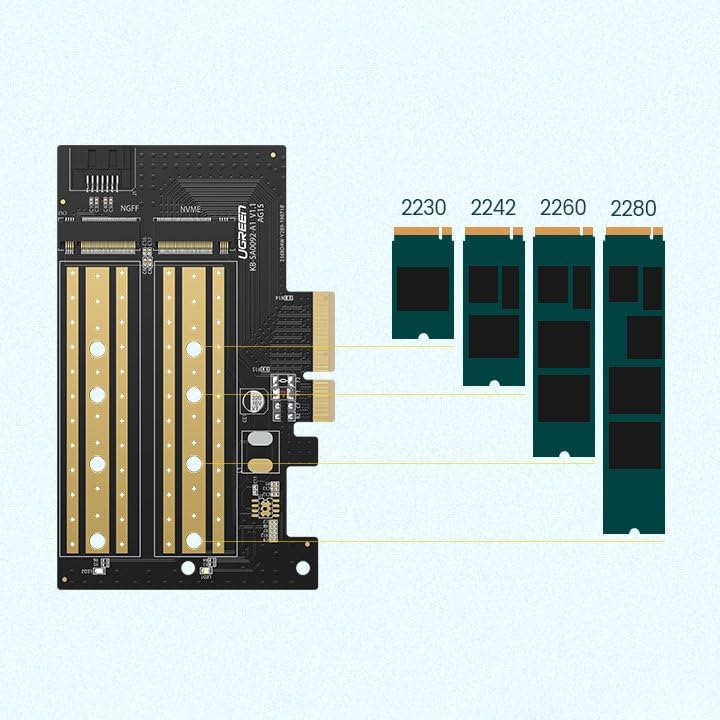

Can support M2 SSD size: 2230 2242 2260 2280 22110.
The maximum speed of M.2 NGFF SSD for SATA III is 6Gb/s - which is SATA III transport protocol. This is compatible with key B - key B + M.
The maximum speed of M.2 NVMe SSD for PCIe is 32Gbps - which is NVMe PCIe 3.0 X4 transfer protocol. Only M Key is supported.

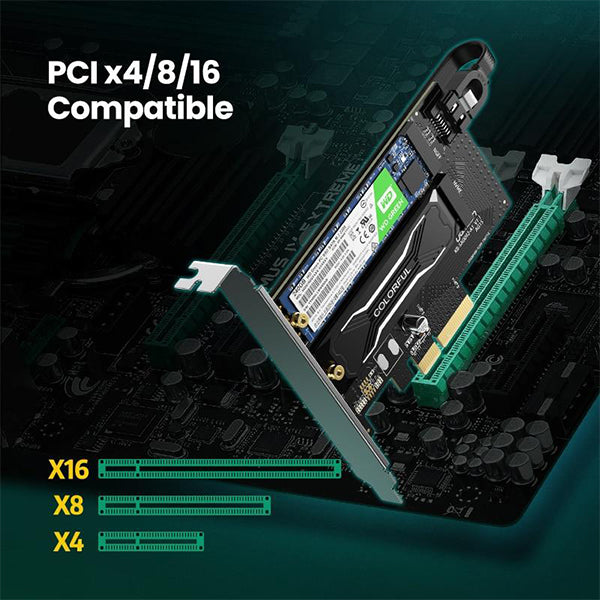

It can be used in PCIE X4 - X8 - X16 slots on computer motherboards.

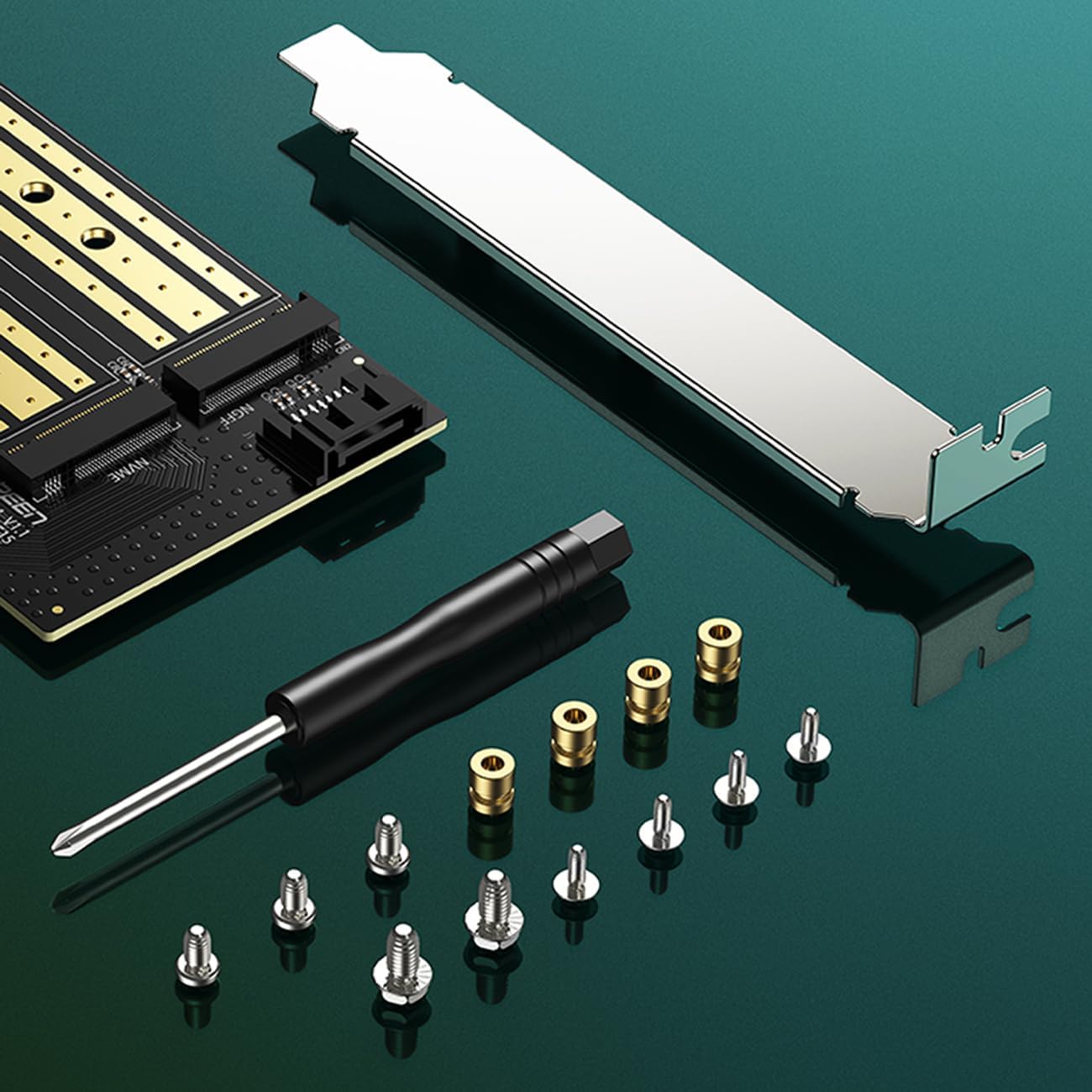

Easy tool installation - 1 screwdriver and 1 high speed SATA III data line included. 2 screws to fix the baffle in the computer case.
Make sure that the Bios PCIE option on the computer is enabled. It is used in high-end game consoles - industrial mainframes and ultra-minimalist computers to increase operating speed and transfer speed.
Itis a dual slot M.2 SSD transfer card. Contact plating - gold thickness 0 - 5 mm - anti-oxidation and stable operation. The product has optimized power supply and optimal cooling for a long time without interruption.
Features:
Heat Dissipation
No driver needed
Gold-Plated connectors
Support 4 sizes of M.2 SSD

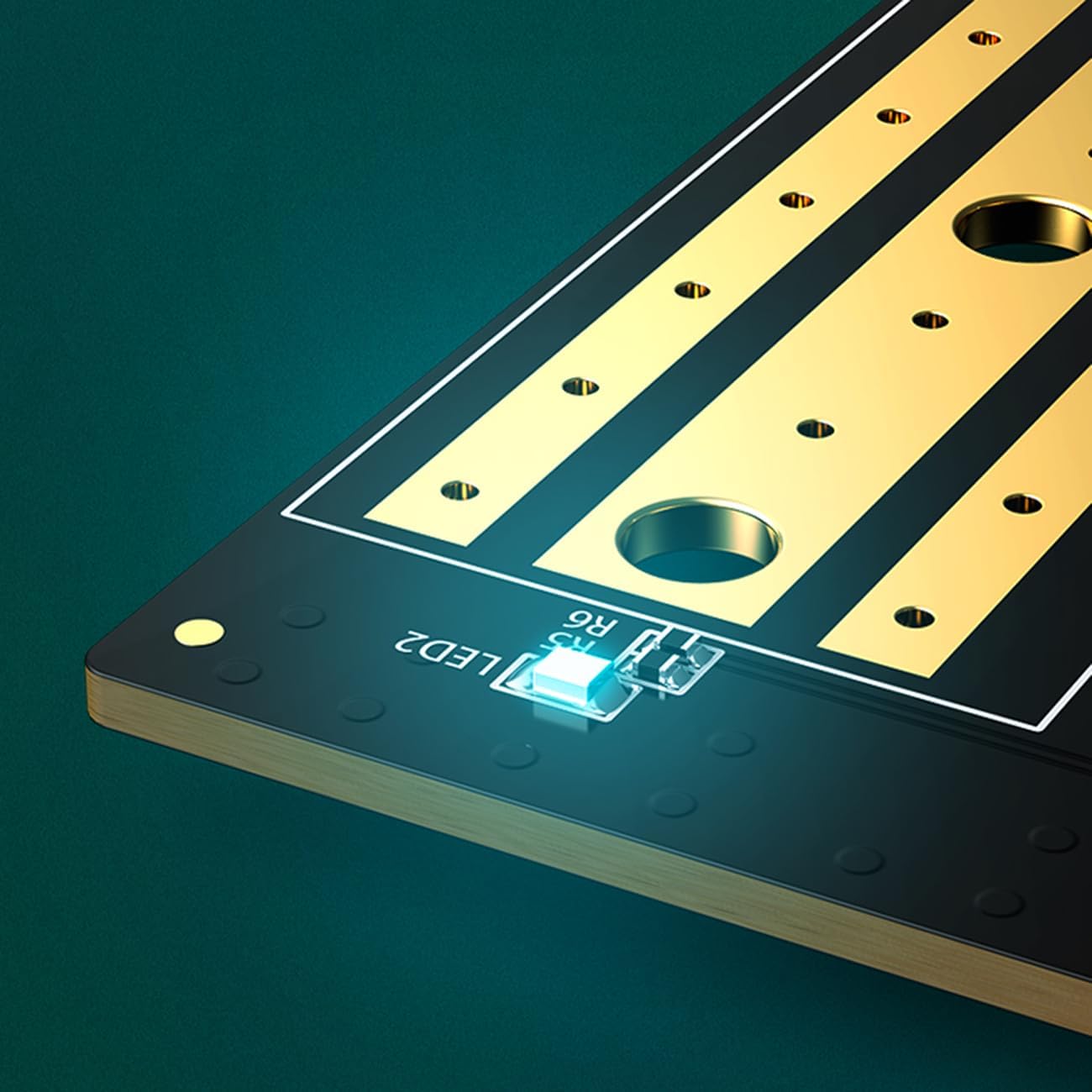

Multi-layer PCBA Protection
Easily expand your PC capacity
Built with high quality capacitor.
Note:
Please switch the PC off before installation.
DO NOT remove this unit or SSD when using.
Please backup the HDD data in advance before partition or formatting.
What's in the box:
1 x M.2 M/B-Key NVMe/SATA PCIe 3.0 X4 Expansion Card
